Lead-acid batteries /Lithium batteries （optional）
High Quality Electronics Controller
High performance Brochure

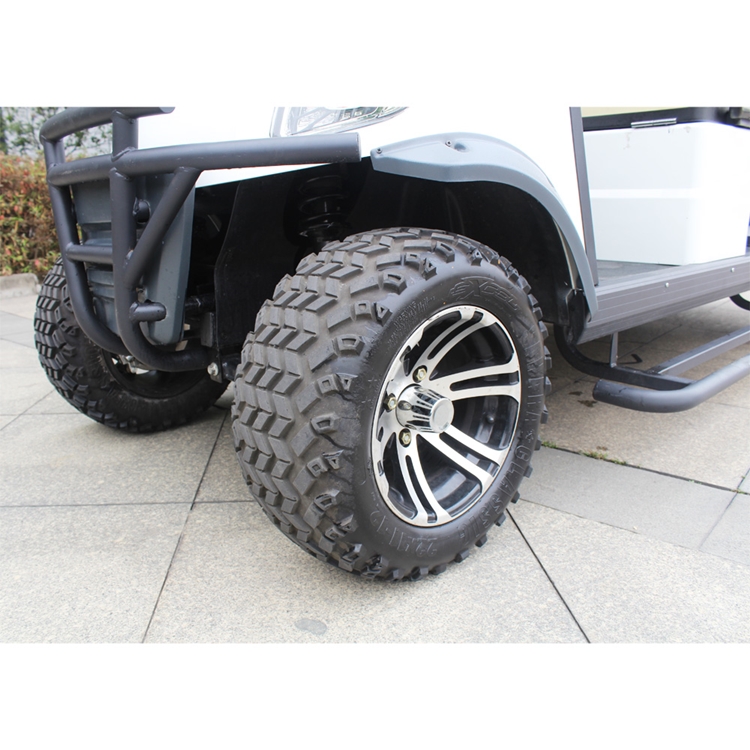

1) The four wheels independent suspension. Front is independent Macpherson suspension. Rear is Trail Arm suspension which makes the cart totally soft and comfortable.
2) Redesign the dashboard, which make the dashboard more clean and more space , we have preset the stereo installation place, set the USB Port on dashboard
3) All lights has been upgraded to LED include the headlights.

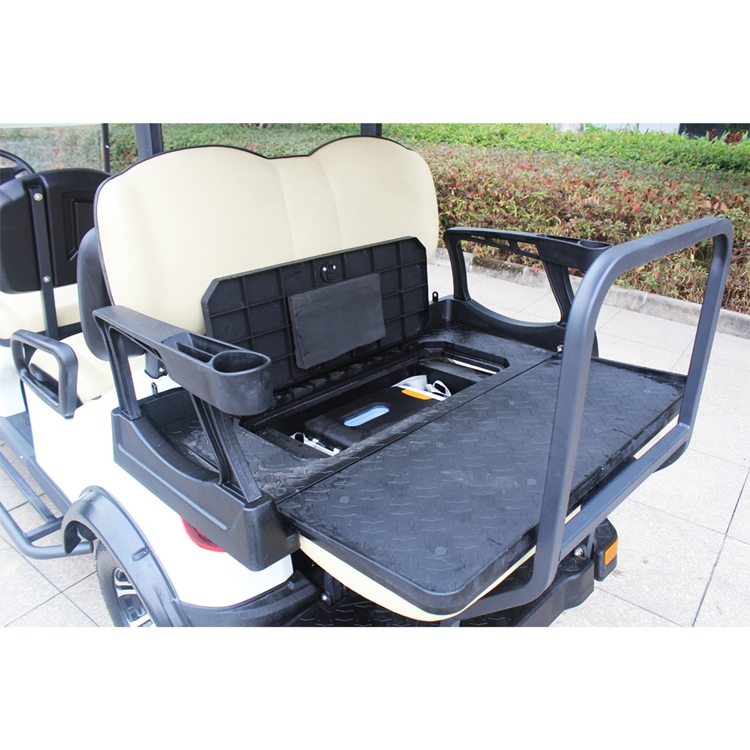

4) The base chassis is steel with plastic molded platform which makes the battery can put on the tray and clean and lights
| Motor | AC 48V 4KW | Driving Range | 60 KM |
| Controller | 48V 400A | Speed (km/h) | 30 km/h |
| Battery | AGM Battery 8V 180Ah/3HR * 6 PCS | Turning Radius | 4.5 m |
| Charger | On Board Charger 48V 25A | Brake Distance | 8 m |
| Ground Clerance | 170 mm | Tire | 10 inch steel rim wheel terrain tire |
| Wheel base | 2420 mm | Dimension | 3600 * 1310 *1980 mm |
| Front Tread/Rear | 964 mm / 1004 mm 1060 mm / 1060 mm | Climbing Capacity | 20% |
| Optional parts | 1. Battery: Available for Trojan T 875, T106, US Battery 8V and 6V 2. Caddy Cooler; 3. Ball washer 4.Side view mirror and rear view mirror; 5.Seat belts(Two points retractable or three points retractable) 6. Rain Cover; 7. Sunshine Curtain; 8. 10 inch aluminium alloy rim with 205/50-10 size turf tire; 9. Speedo(Multifuction, can show time, speed, driving range ,battery capacity and rear view when reverse) 10. Rear Cargo box; | ||
