Marshell UTV DV-T2

Suitable for various complex working conditions.

Timely four-wheel drive.

Excellent comfort.

Strong maneuvering stability.

It humanized the steering wheel design.

Strong load capacity.

Brochure  UTV


  • UTV
  • UTV
  • UTV
  • UTV

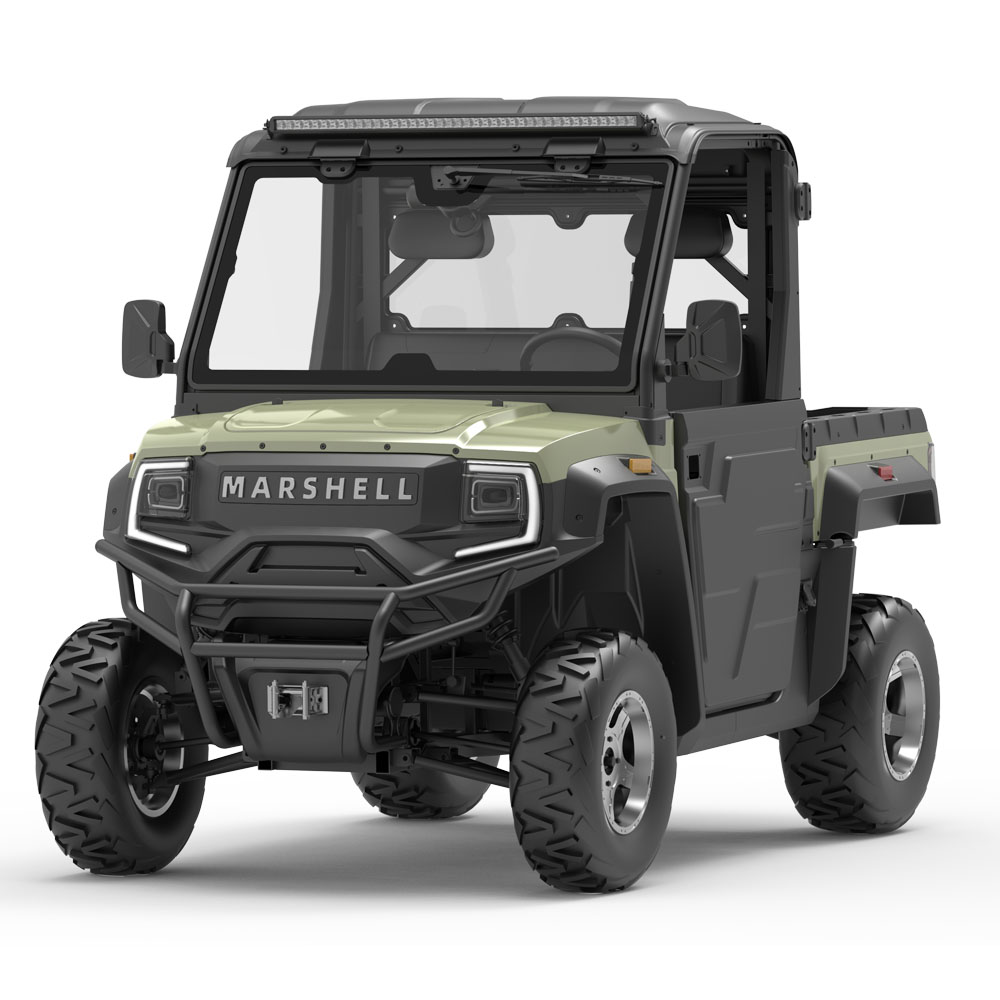

Marshell UTV DV-T2

 Suitable for various complex working conditions. It can go through harsh environments such as dunes, mud, and rainforests and is ideal for mountainous areas, farm work, and other scenario


  1. Timely four-wheel drive. The driver can choose two-wheel drive or four-wheel drive to conquer the terrain and satisfy the driving experience according to different usage environments.


  2. Excellent comfort. Both front and rear suspensions are designed as an independent suspension with a double swing arm structure. In addition, the driver can adjust the pre-pressure of the dampers and damping damping according to personal preference to improve comfort.


  3. Strong maneuvering stability. The front and rear suspensions are designed with a lateral stabilizer bar structure, so the whole car will not have any obvious lateral instability in turning

Electric UTV Features
                            PARAMETERS            DV-T2                  DV-T4
Lead Acid Battery Lithium-ion Battery Lead Acid Battery Lithium-ion Battery
     BASE
Overall Vehicle Size(LxWxH)(mm)        2960*1550*1950          3810*1550*1950
Driving Range(mile)/(km)    50/80   62/100    43/70       56/90
Minimum Turning Radius(m)                   4.7                   5.4
Bed Box Dimensions(LxWxH)(mm)          830*1100*280            830*1100*280
Seating Capacity                    2                     4
Max Speed(MPH)/(km/h)                 28/45                     28/45
Climbing Capacity(%)               27%(15°)                   27%(15°)
Payload Capacity(kg)                   340                     500
       POWER PMSM Motor             72V 15KW (20HP)             72V 15KW (20HP)
Controller               72V 550A               72V 550A
Battery Charger              72V20A                72V20A
Battery(QTY/Type) 8V180AH/3HR*9 76.8V200AH 8V 180AH/3HR*9 76.8V200AH
      STEERINGDrive ModeReal-Time 4WD Real-Time 4WD
Service BrakeFour-wheel Hydraulic Four-wheel Hydraulic
Parking BrakeHand Brake Hand Brake
Tires(front/rear)AT26x9-14/AT26x11-14 AT26x9-14/AT26x11-14
     BODYAuto Tipping Hydraulic Hydraulic
Seatbelt(Type) Three-point Seat belt Three-point Seat belt
