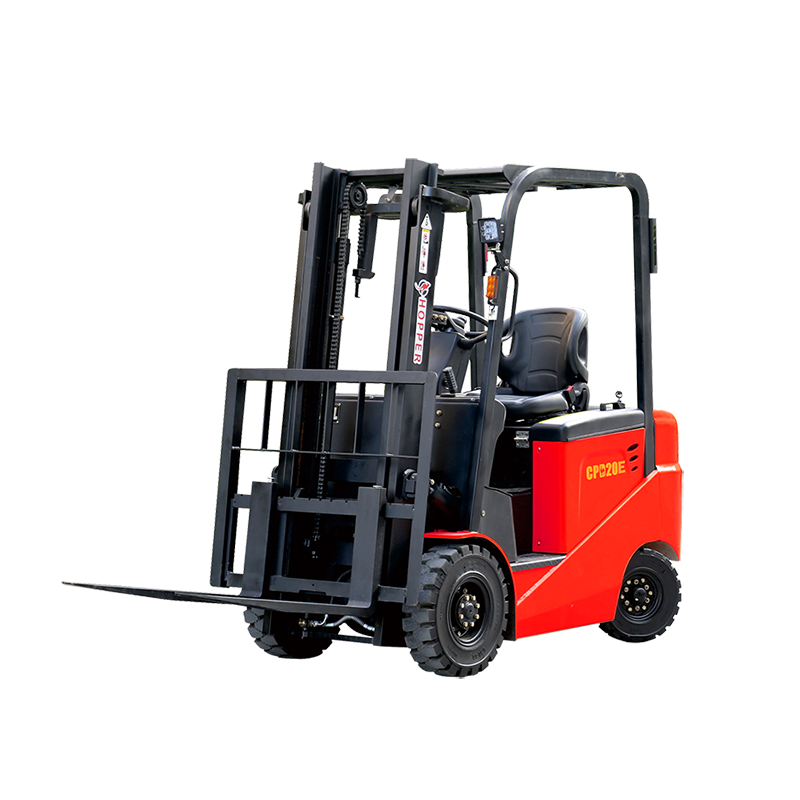

CPD20E

Safe and reliable

Easy operation

High efficiency

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

CPD20E

Electric Forklift Advantages

1. AC system precise control, CAN bus technology multiple protection, safe and reliable.

2. Powerful, driving, leading lifting and climbing performance.

3. Overhead guard and body welding monolithic structure, the overall strength more higher.

4. HMI design of the control handle, easy for left and right hand operation, improve the driving comfort.

5. Small turning radius, good passing performance.

6. Mast drop cushioning and comfortable vehicle operation.

7. Intelligent deceleration turning design, improve the stability of the vehicle during traveling, to avoid tipping cargo. (Optional)

CPD20E Technical Parameters
ModelCPD20E
Load capacity/rated loadQ2000  kg
Overall length(without fork)L'2210  mm
Overall widthW1070  mm
Overall height mast extendedH12120  mm
Overall height of overhead guardH42180  mm
Overall height when liftH24035  mm
Min.ground clearance mast loweredH5120  mm
Min.ground clearance unladen/laden center of wheelbaseH6130  mm
Wheel tread FrontW3890  mm
Wheel tread rearW2920  mm
WheelbaseL11400
Load distance center of drive axle to forkL2430  mm
Lift heightH2500/3000/5500mm
Free lift heightH3130  mm
Mast tilt angle,front/rearα/β6/8°
Max.lift speed unladen320  mm/s
Max.lift speed laden274  mm/s
Max. travel speed unladen14  km/h
Max.travel speed laden12  km/h
Min.outside turning radiusR2010  mm
Max. gradability,laden12  %
Load center radiusC500  mm
Weight(unladen)3480  kg
Front tire6.50-10
Rear tire5.00-8
Drive motor8  KW
Lift motor12  KW
Battery48/450V/Ah
Type of drive controlFull AC system
Aisle width for length ways800*10003650  mm
Aisle width for length ways800*12003850
Aisle width for length ways1000*1200  Ast3850
Container quantity20GP/40HQ5/10unit
