CBD25

Green work environment

Easy operation

High efficiency

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

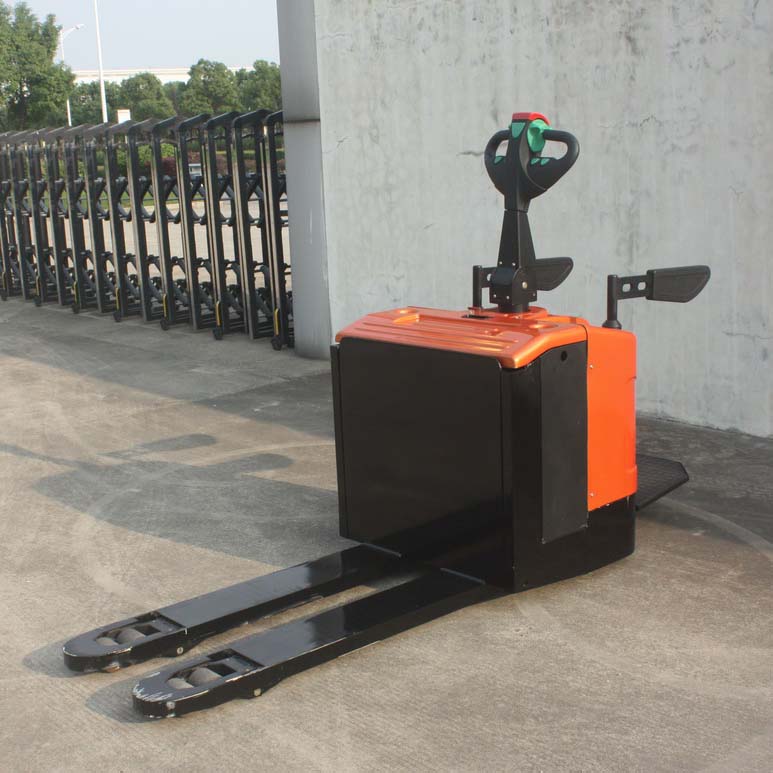

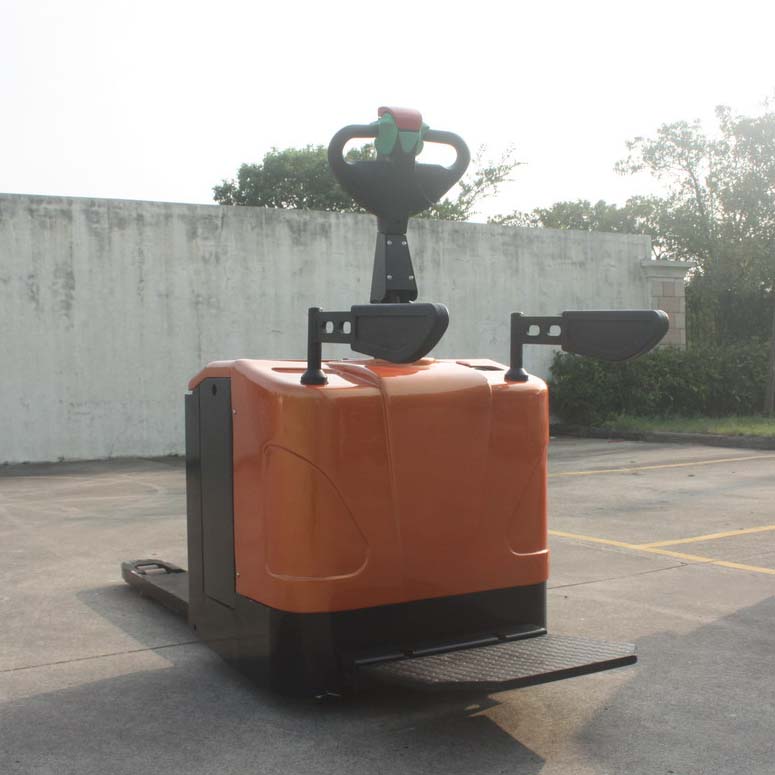

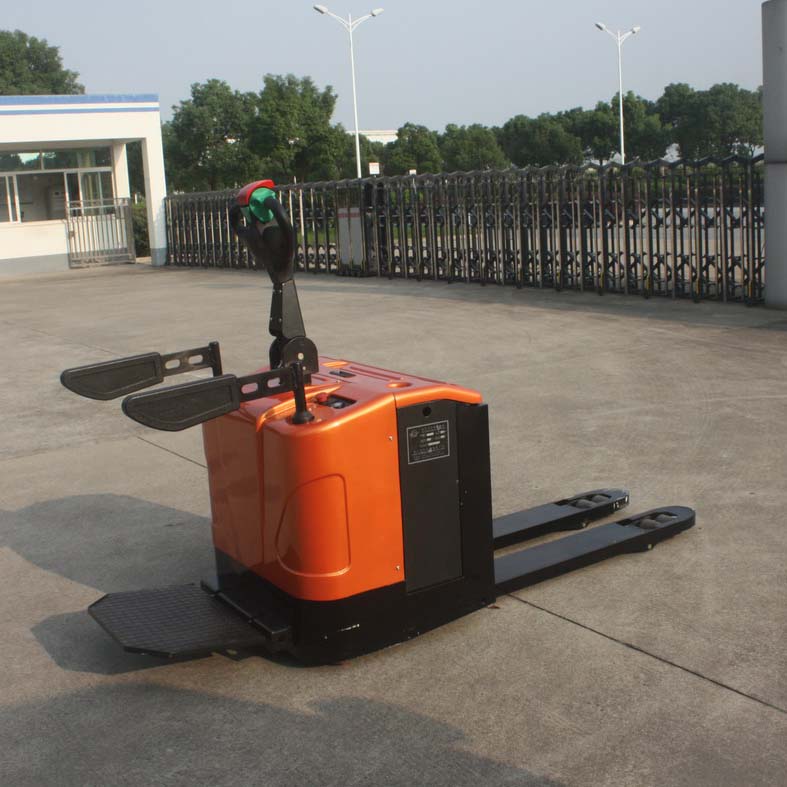

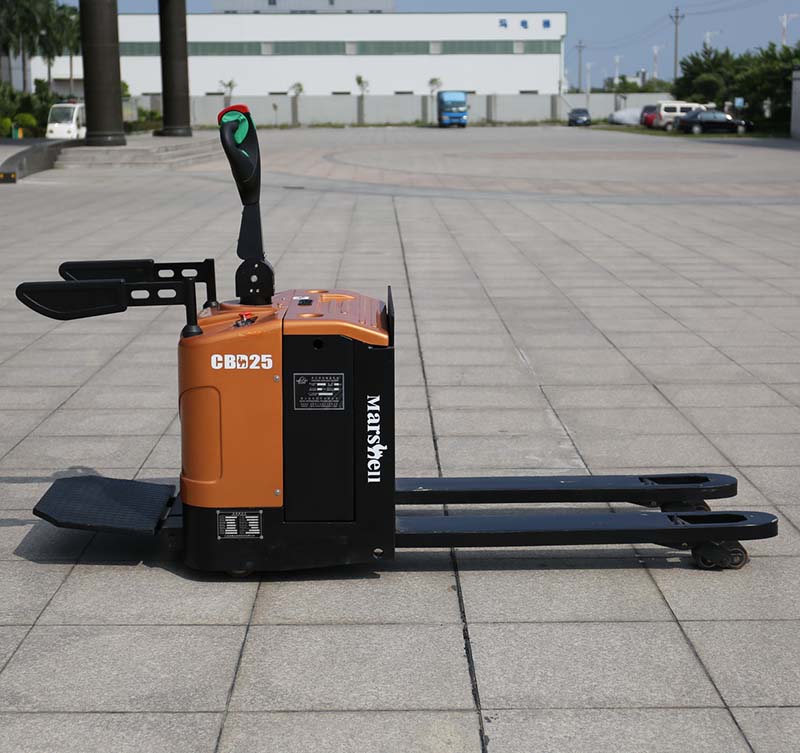

CBD25

Electric Pallet Jack Advantages

1. AC drive control precision,maintenance-free, safe and reliable.

2. High-performance hydraulic station, low noise, small vibration, high efficiency.

3. HMI design of the control handle, easy for left and right hand operation, improve the driving comfort.

4. Electronic steering systems, lightweight, low noise, more effort.

5. Emergency reverse device, more safety.

6. Electromagnetic, regenerative braking system.

CBD25 Technical Parameters
ModelCBD25
Load capacity/rated loadQ2500   kg
Load center distancec600   mm
Overall lengthL1/L22300/1812mm
Overall widthb1790   mm
wheelbasey1475   mm
Height (to handle)h61450   mm
Fork height,loweredh1385   mm
Max.lift heighth3205   mm
Min.ground clearanceh130   mm
Forks outside widthb2550/685mm
Forks inside widthb4180/315mm
Fork widthe185   mm
Front treadb3365/500mm
Max.lift speed unladen25   mm/s
Max.lift speed  laden20   mm/s
Max. Travel speed unladen6   km/h
Max. Travel speed laden6   km/h
Min. outside turning radius1665   mm
Max. gradability,laden5   %
Max. gradability,unladen8   %
Weight(unladen)790   kg
Battery capacity210   AH
Battery voltage24   V
Aisle width for lengthways1000*1200 tray2400   mm
Aisle width for lengthways800*1200 tray2320   mm
Container quantity20GP/40HQ16/32unit
