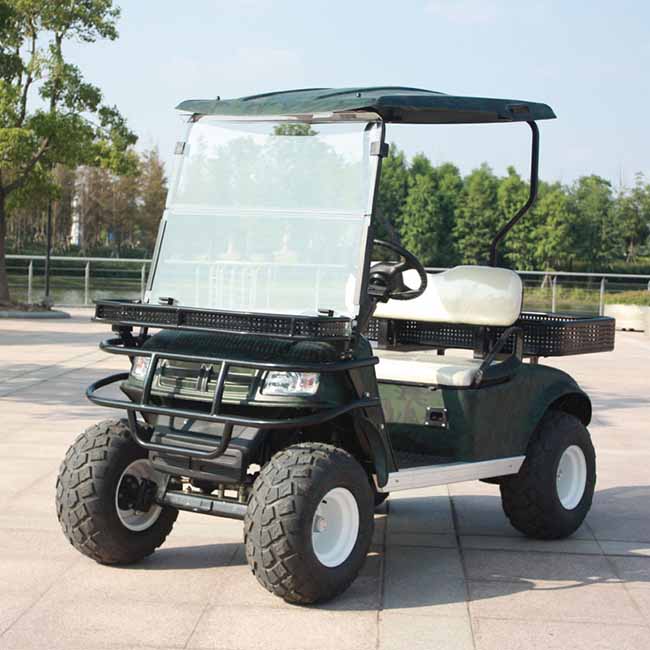

DH-C2

Special-duty utility cars

Import main parts

Cargo box

  • 1
  • 1
  • 1
  • 1
  • 1

DH-C2

Features

1. Import main parts: US Batteries (From USA), Delta-Q chargers (From Canada); Cutis controller (From USA);

2. Driving system: Series shunt-wound motor brings you unbelievable climbing power;

3. Functional collocation: Rear basket and flip-flop seat;

4. US or Trojan batteries imported from USA, Delta-Q charger;

5. CE for whole carts;

6. Including cigarette socket;

7. Accelerator: Adjustable inductive accelerator continuously variable speed system;

8. Leaf spring with Hydraulic shock absorbers;

9. Can modify the rear basket to be rear seat or rear cargo;

10. You can choose 4 wheel hydraulic disk or Rear mechanical drum brake and Regeneration brake collocation;

Specifications
ModelDH-C2 Gross weight:520kg
Passenger capacity:2Carring capacity:360kg
Battery:8V 170AH*6pcsSteering:Rack&Pinion'' Sreering
Motor:DC 48V 4KWBrakes:Rear Wheel Mechanical Drum Brake
Controller:DC 48V 400A   Tire:22*10-10, 4Ply
Charger:48V18A  Ground clearence:150mm
Max.Speed:32km/hOverall dimension:2600*1245*2070mm
Max.travelling range:70-80kmRear Cargo dimension1100*675*160mm
Climbing capacity:0.3Qty per container:8pcs/20GP 18pcs/40GP  18pcs/40HQ
Brake Range:6mStandard parts:Front/ rear Basket, front bumper, light system.
Minmum Turning radius:4mOptional parts:

Side mirror, Inner mirror, Seat belts, Weather enclosure, Sunshade curtain,

 Police light, PA system, CD player, rear facing seat kit, Trojan Battery
