DG-LSV2

Smart steering system

Good climbing ablity

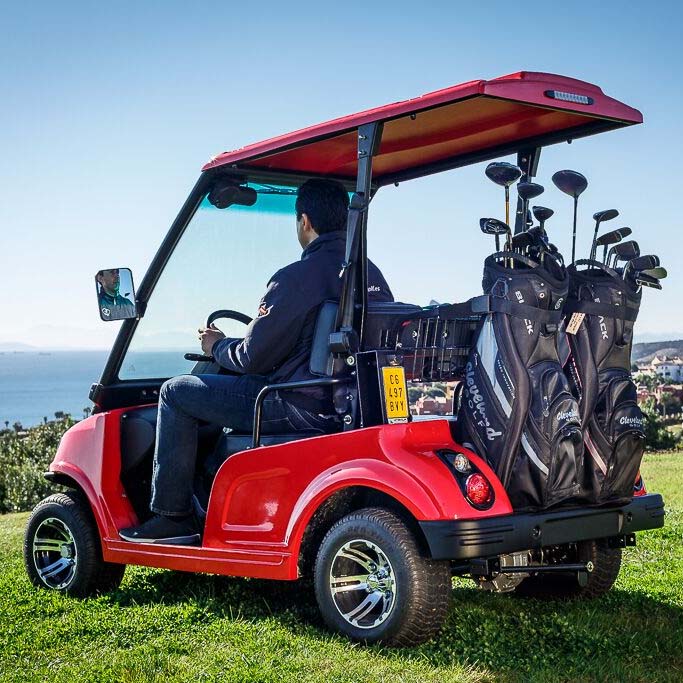

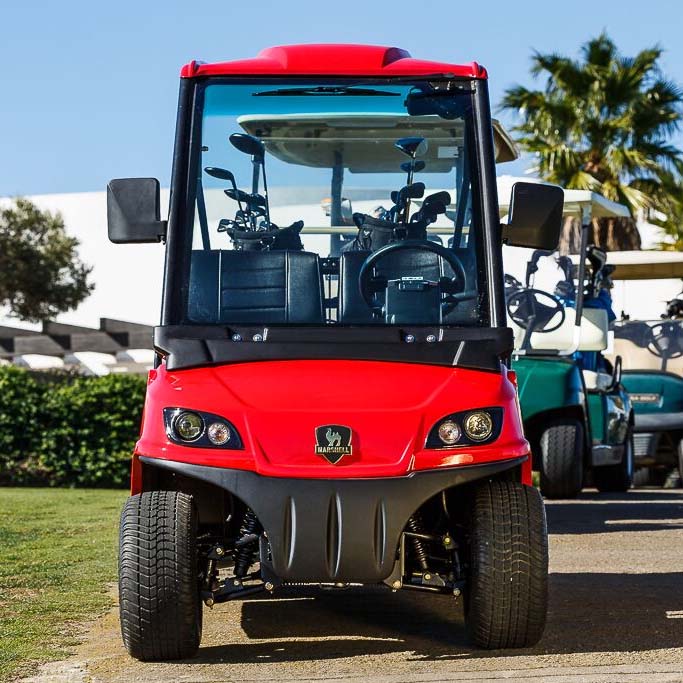

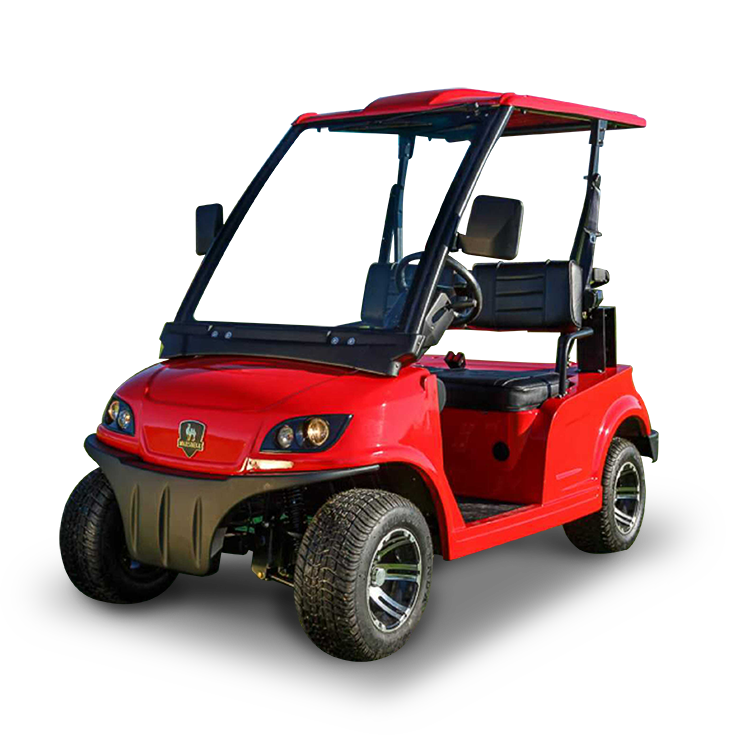

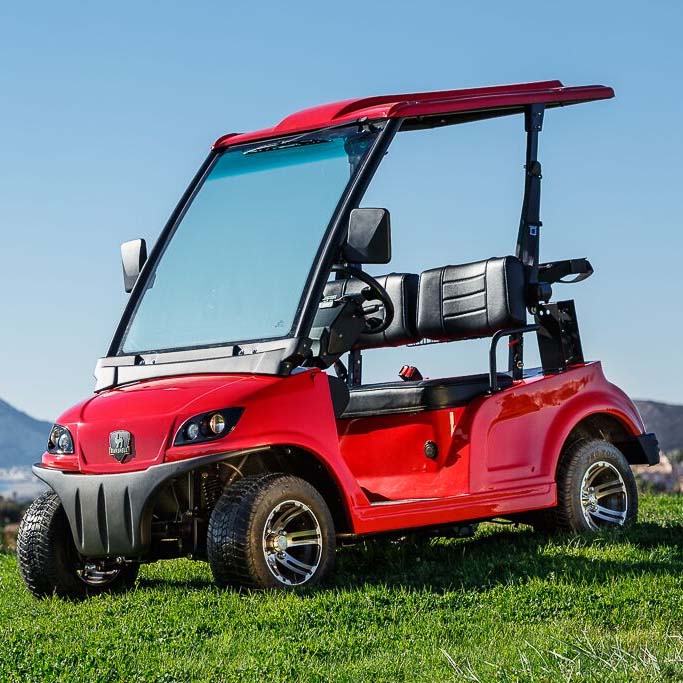

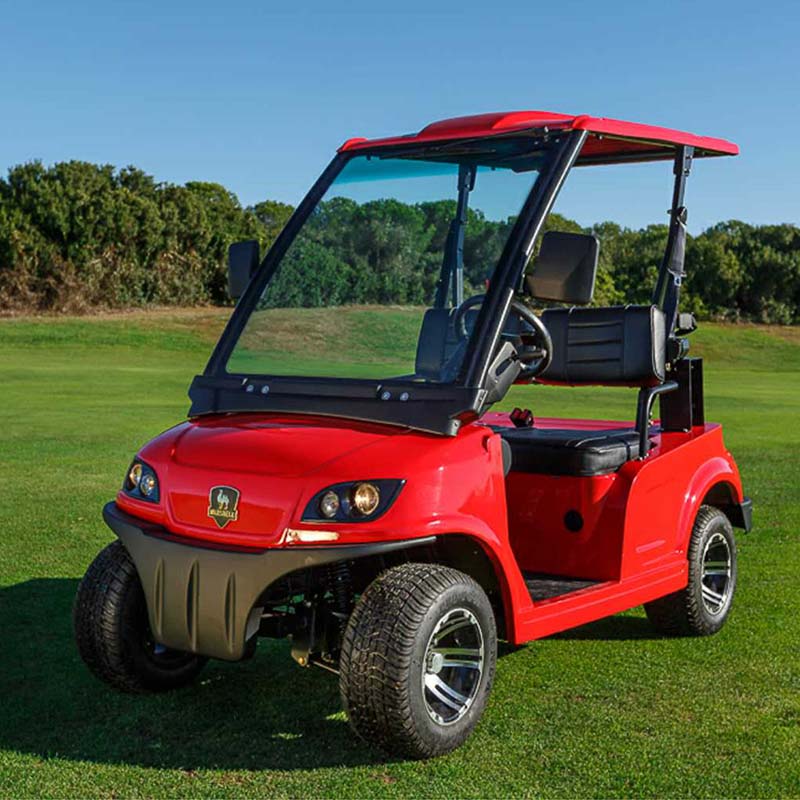

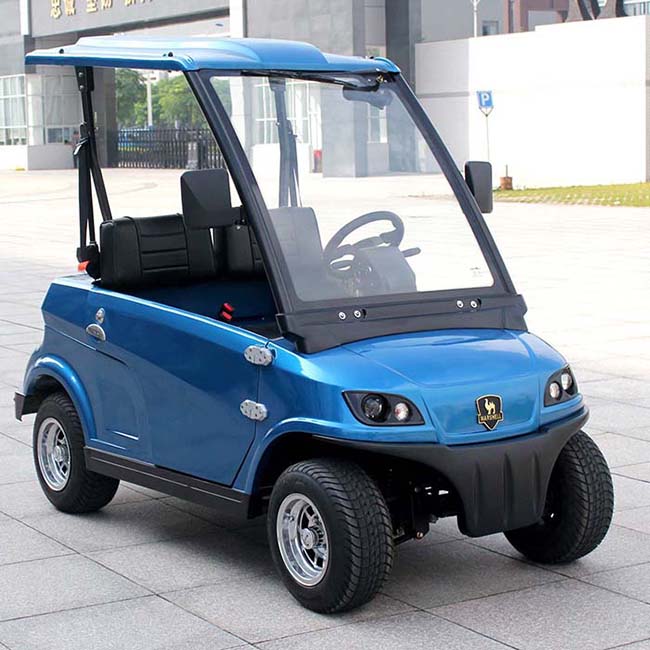

Low Speed Electric Vehicle

DG-LSV2

Features

1. Good aftersale-service, as most parts are manufactured by ourselves;

2. CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;

3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);

4. Brake system: Rear wheel Mechanical Drum Brake;

5. Good hill climbing ability, the system allows you to customize the car to fit your course;

6. Smart steering system, easy to make forward and backward;

7. Good climbing ablity and can park easily on Hills;

8. Can be easily to be modified to Utility carts.

Specifications
Passenger Capacity2Gross Weight 600kg
Battery8V170AH*6Carrying capacity200kg
MotorDC 48V/4KWSteeringSelf Compensating  "Rack & Pinion" Steering
ControllerCurtis 48V400AbrakesRear Wheel Mechanical Drum Brake, with Hand brake
Charger48V18A,Full Automatic Effcientcy Pulse chargertire205/50 R10
Max. Speed40km/hGround clearance90mm
Max.travelling range80kmOverall dimension(L*w*h)2440*1230*1860mm
Climbing capactity0.3Qty per container8pcs/20FT 17pcs/40FT 17pcs/40HQ
Brake Range2.5mStandard partsSide mirror
Minmum turning radius3.5mOptional partsCD player, Seat belts,  Trojan Battery
