DG-LSV4-H with EEC

10 inch Alloy wheel

Whole piece glass windshield

Digital display meter

Retracted seat belts

Rear Trunk

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

DG-LSV4-H with EEC

Features

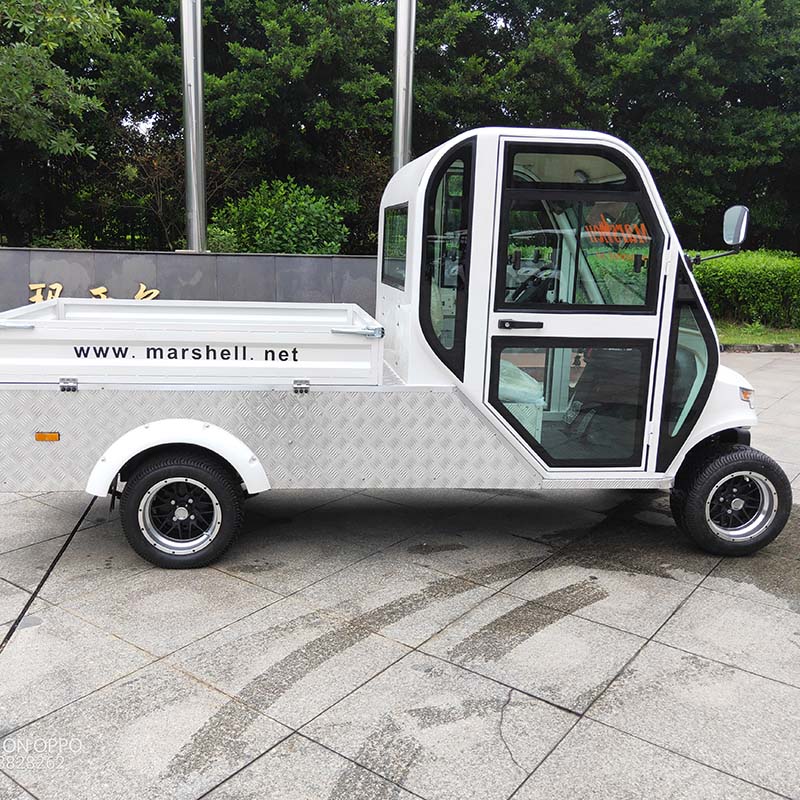

Note: Marshell EEC Type Approved Utility Cart

1. 4-Wheel Hydraulic braking with Front Disc Brakes;

2. Double A-arm independent front suspension with adjustable shock absorbers;Front Suspension Independent Double A-Arm Coil Over Shock;

3. Adjustable camber can keep the tire use longer;

4. Double-ended Rack& Pinion steering;

5. Higher ground clearance with 120mm;

6. Optional 8*6V Battery for longer traveling distance;

7. On-board Charging system;

8. Downhill, Regenerative braking with Roll-away protection (with key on);

9. Digital Display Meter;

10. Automotive Glass Windshield;

11. Windshield Wiper;

Specifications
Motor:AC 48V 4KW
Battery:Leoch GEL Battery 4-EV-180 x 6 PCS
Controller: Curtis 1236E 450A AC
Charger:Delta-Q Charger 48V 18A
Braking System:Four Wheel Hydraulic Drum Brake
Hand Brake:With
Steering:Rack & Pinion
Suspension: Front Wheel Double A -Arm Independent Suspension  Rear Wheel Leaf Spring
Wheel:20*9-12 12 inch Aluminium Wheel
Cab:PP Front Cover+ Fiber Glass Windshield Frame + Aluminum Plate Structure
Gross Weight:800 KGS
Carrying Capacity:460 KGS(include the two seats person weight 160 KGS )
Rear Dump Bed:Carry 300 KGS
Rear Dump Bed Dimension:1500 * 1000 * 230 mm
Dimension:3520*1270*1740 mm
Wheel Base:2430 mm
Front Wheel Thread:950 mm
Rear Wheel Thread:1000 mm
Ground Clearance:120 mm
Turning Radius:<=4.5 m
Climbing Capacity:<= 15%
Braking Range: <= 5 m
Max Speed:40 km/h
Driving Distance:50 KM (Can Extend to 60 km- 70 km by using 6V GEL Battery x 8 PCS)
