Cleaning efficiency 5000 ㎡ /h
Cleaning width 760 mm
Sewage tank capacity 90 L
Battery working time ≈ 4h
1. Large sewage tank cover design, easy to clean and maintain to avoid breeding bacteria.
2.100L large sewage tank capacity, improving cleaning efficiency.
3. The side pipe suction motor and independent air duct design prevent sewage from entering the motor coil.
4. The backward water skimmer automatically rises, effectively preventing damage to the rubber strip when reversing.
5.1.3m turning radius, which can realize direct turnaround in narrower aisles.

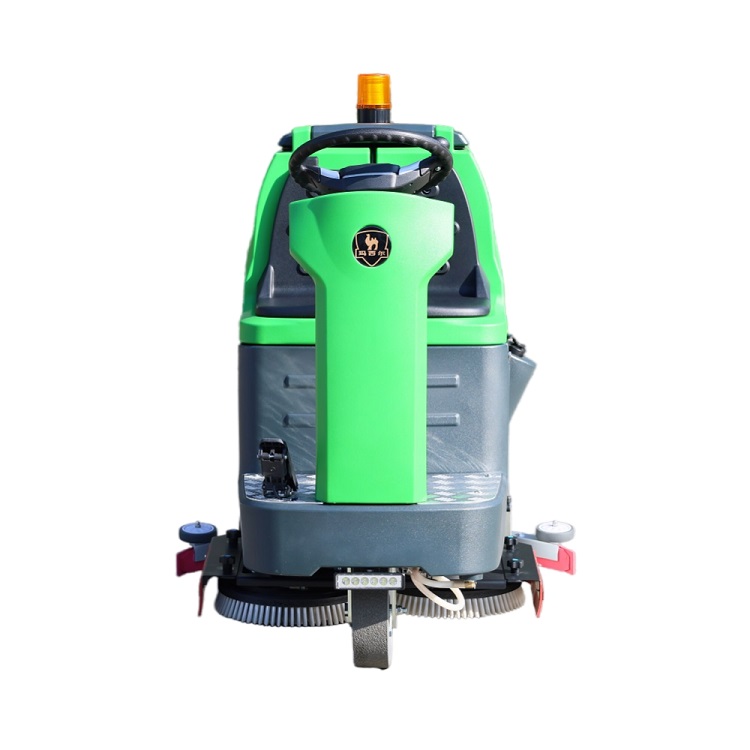

| Model | DQX76 | Unit |
| Dimension(length*width*height) | 1445*840*1340 | mm |
| Cleaning width | 760 | mm |
| Cleaning efficiency | 5000 | m2/h |
| Weight (with battery) | 280 | kg |
| Total power | 2100 | W |
| Driving motor | 480 | W |
| Brush motor | 2*550 | W |
| Suction motor | 450 | W |
| Voltage | 24 | V |
| Clean water tank capacity | 90 | L |
| Travel speed | 5.6 | KM/H |
| Width of suction blade | 1000 | mm |
| Battery(Lead acid/Lithium) | 24/25.6 | V |
| Charging time | 8-10 | h |
| Sewage tank capacity | 100 | L |
| Working time | 4 | H |
| Climbing degree (no load) | 15 | % |
| Packing size | 1520*880*1350 | mm |
| Turning radius | 1300 | mm |
