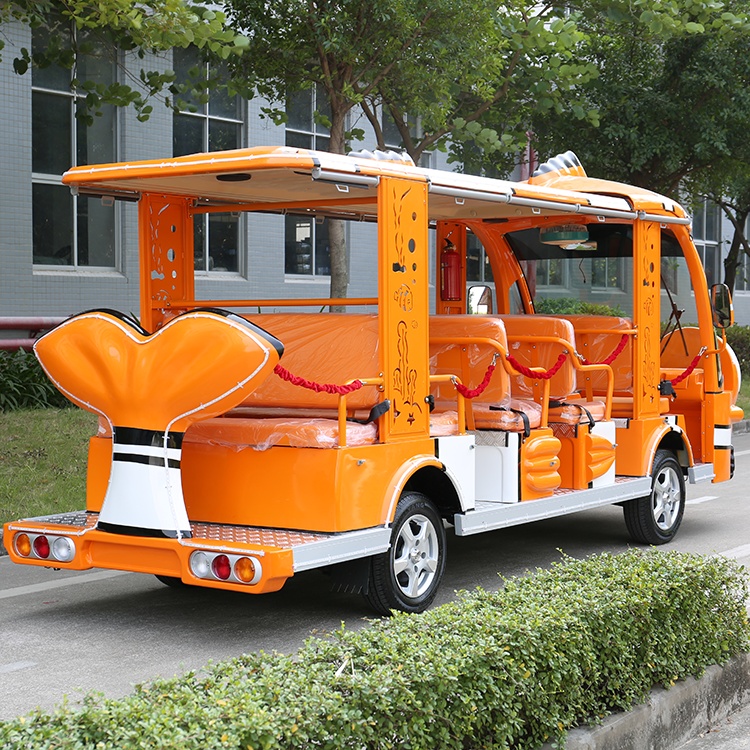

DN-14 Nemo Design

Smart steering system

Rustproof body structure

Consistent and efficient electric drive-train

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

DN-14 Nemo Design

Features

1. Arractive design and powerful in appearance, with strong carrying capacity and lower noise;

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;

3. Small turning radius; and smart steering system; Whole style steel rear axle;

4. Can be easy modified to transportation vechicles;

5. CE certificate for whole carts;

6. Import main parts: US batteries( From USA) and Curtis controller(From USA);

7. Four wheels hydraulic braking system and independent parking brake.

Specifications
Battery6V 220AH Max turning radius (m)6.5m
MotorDC system 72V 5KWMax. climbing ability (loaded)0.2
ControllerCurtis DC 72V400A Overall dimensions(mm)4800*1520*2025
Charger72V20AH Max. loading weight(kgs)1120
SuspensionMacpheron strut suspensiongross weight (kgs) with battery1300
Steering Rack&Pinion steering Wheel base(mm)2700
Brake SystemFour wheels hydraulic braking system Ground clearance(mm)130
Passenger capacity14Tires:165/70R 13
Range (loaded) (km)80km ChassisSteel
Max. speed (km/h)28km/hQuantity per Container 2/4/4pcs*20FT/40GP/40HQ
Configuration
STANDARD   CONFIGURATION:
DESCRPTIONS REMARKS
seats belts 3 points for driver, 2 points for other passengers
wiper wiper
speed meter speed meter, battery indicator,voltmeter, current-meter,
rear view mirrors rear view mirrors
front and rear light Full lights system
Body Fiber glass body
Roof Steel Frame + fiber glass cover
Windshield One-piece see-through laminated windshield
Beverage holders 1 pcs cup drink holders
STANDARD   CONFIGURATION:
DESCRPTIONS REMARKS
Body Fiber glass body
Roof Steel frame + fiber glass cover
Windshield One-piece   see-through laminated windshield with wiper
lights system front lights, tail lights, turing lights, brake lights, fog lights
mirrors side mirrors, inner mirror
Dashboard   speedometer combined with battery capacity indicator, hours   meter, current meter, voltage meter, range meter
OPTIONAL    CONFIGURATION/ACCELERATORS:
Trojan battery,AC electric system 72V,Full enclosure weather curtains,Sunshade Curtain,Seat belts,Loud speaker,CD player,Solar panel on top,Aluminum   rim wheels,Front disc brakes, rear wheel drum brakes
