Electric Shuttle Bus DN-11

Smart steering system

Rustproof body structure

Consistent and efficient electric drive-train

  • Electric Shuttle Bus
  • Electric Shuttle Bus
  • Electric Shuttle Bus
  • electric shuttle bus
  • Electric Shuttle Bus

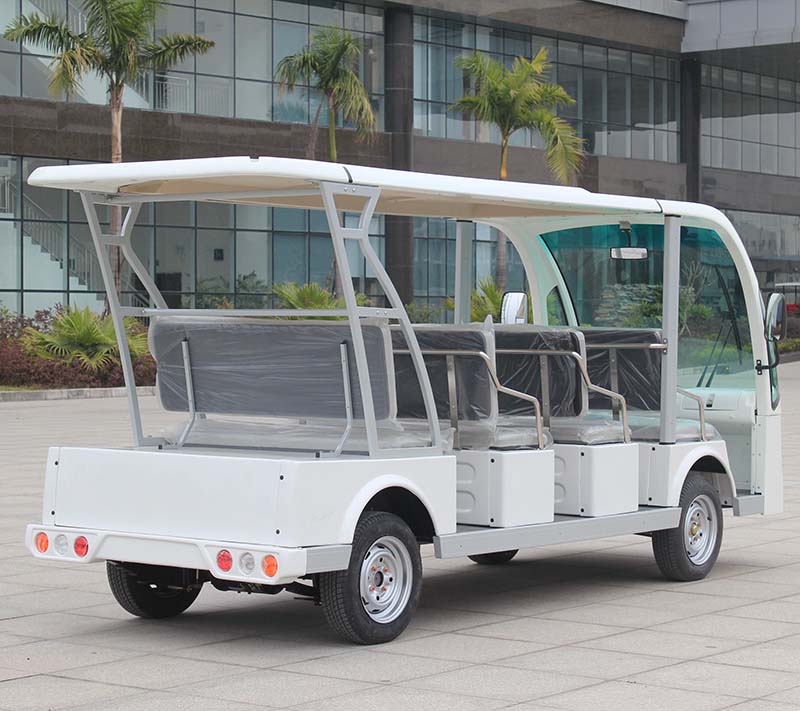

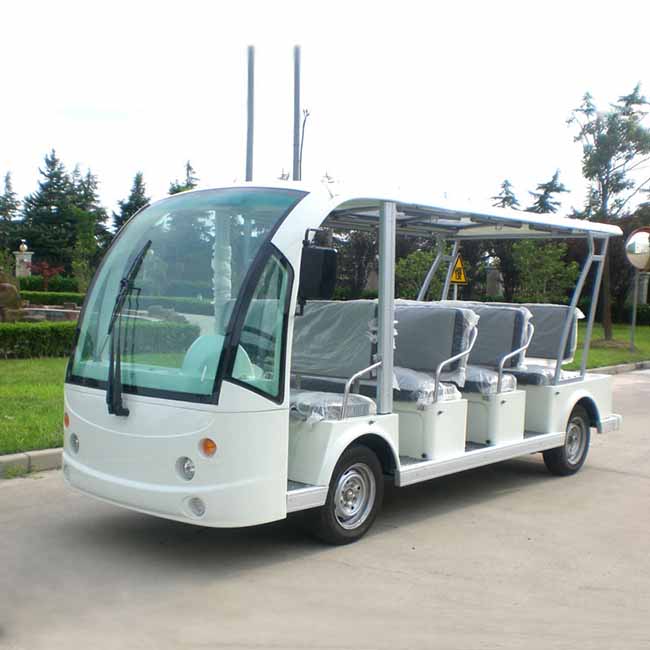

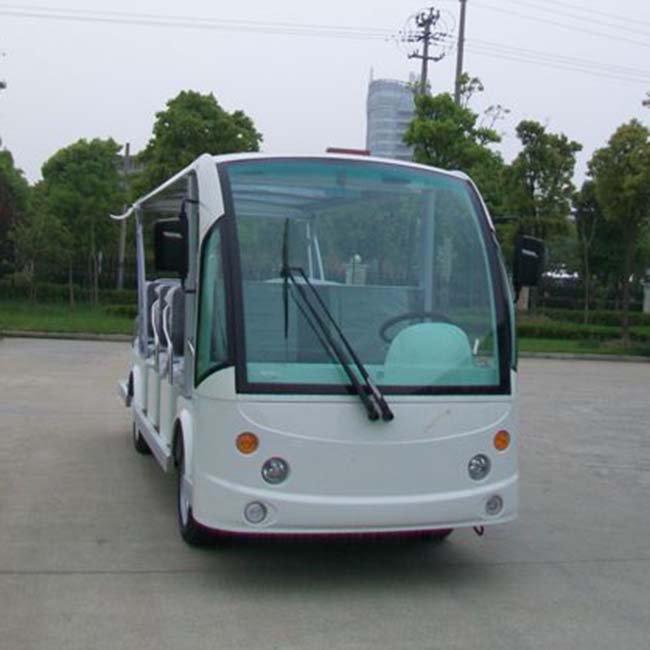

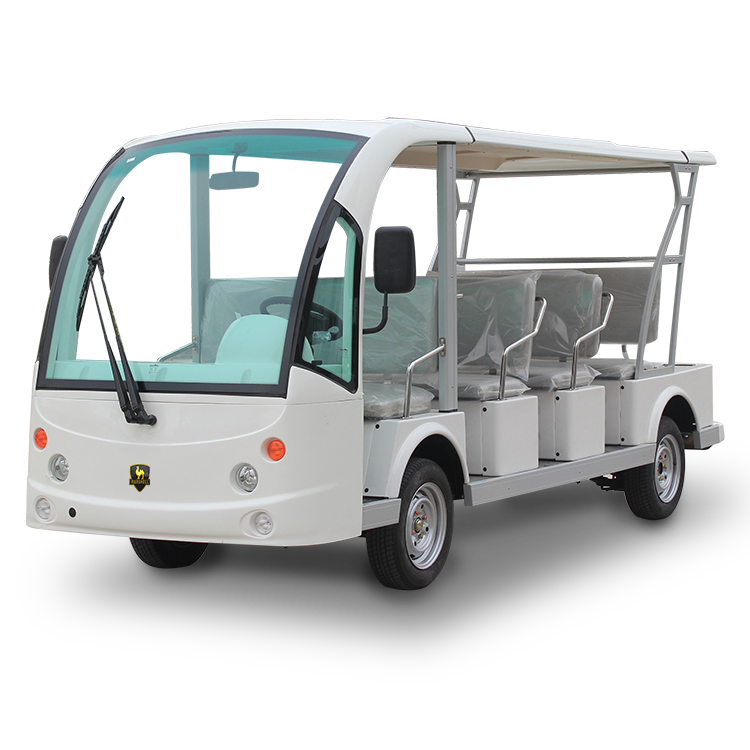

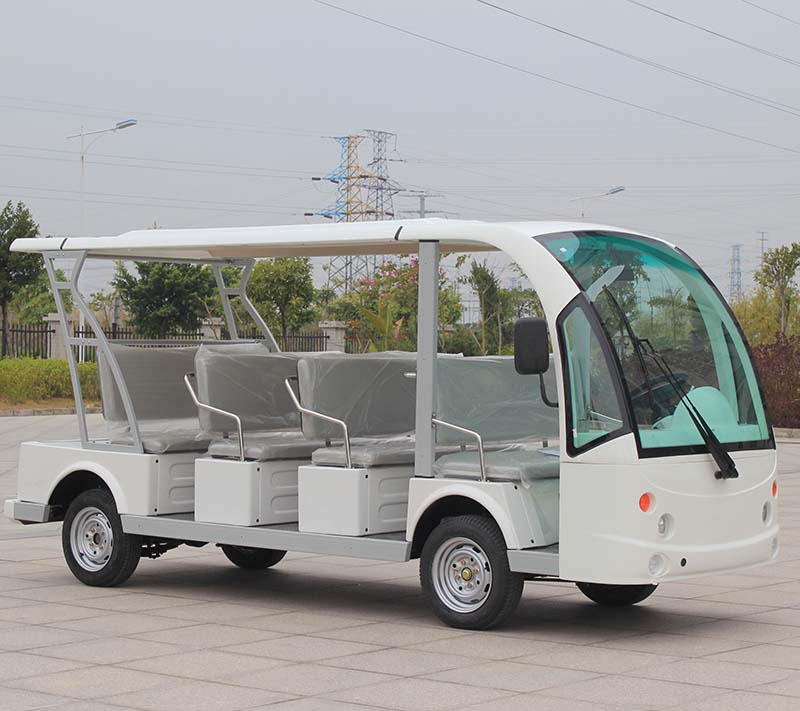

Electric Shuttle Bus DN-11

Electric Shuttle Bus Features

1. Standard color: White; arractive design and powerful in appearance, with strong carrying capacity and lower noise;

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure; #Electric Shuttle Bus#

3. Small turning radius; and smart steering system; Whole style steel rear axle;

4. Can be easy modified to transportation vechicles;

5. CE certificate for whole carts; #Electric Sightseeing Bus#

6. Import main parts: Maintenance free batteries and Curtis controller(From USA);

7. Four wheels hydraulic braking system and independent parking brake.

Electric Shuttle Bus Specifications
Battery6V225AH
Minimum turnin radius(m)6.5
Motor72V5KWDCsystemMax.climbingabilit (loaded)20%
Controller72V400AOverall dimensions(mm)4650*1520*2700
Charger72VMax.loading weight(kgs)1000
Suspension:Macpheronstrut suspensionNetweight(kgs)1250
Steering  Rack&Pinionsteering  ChassisSteel
Braking systemFourwheelshydraulic brakingsystem  Wheelbase(mm)2700
Passenger capacity11Ground clearance(mm)130
Range (loaded)(km)80kmTires:165/70R13
Max.speed (km/h)28Quantityper Container  2pcs/20ft.4PCS/40HQ
Electric Shuttle Bus Configuration
STANDARD  CONFIGURATION:
DESCRPTIONSREMARKS
BodyFiber glass body
RoofSteel frame+fiberglasscover
WindshieldOne-piece see-through laminated windshield withwiper
lights systemfront lights,tail lights, turing lights,brake lights,fog lights
mirrorsside mirrors, inner mirror
Dashboard

speed ometercombined with battery capacity indicator, hours  meter,current meter,voltage meter, range meter

OPTIONAL   CONFIGURATION/ACCELERATORS:
Trojan battery, AC electric system 48V/72V, Rear seat, Full enclosure weather curtains, Sunshade Curtain, Seat belts, Loud speaker, CD player, Solar panel on top, Aluminum rim wheels, Front disc brakes, rear wheel drum brakes, Right hand steering
COLORS:
Any colors can be customized per customers
