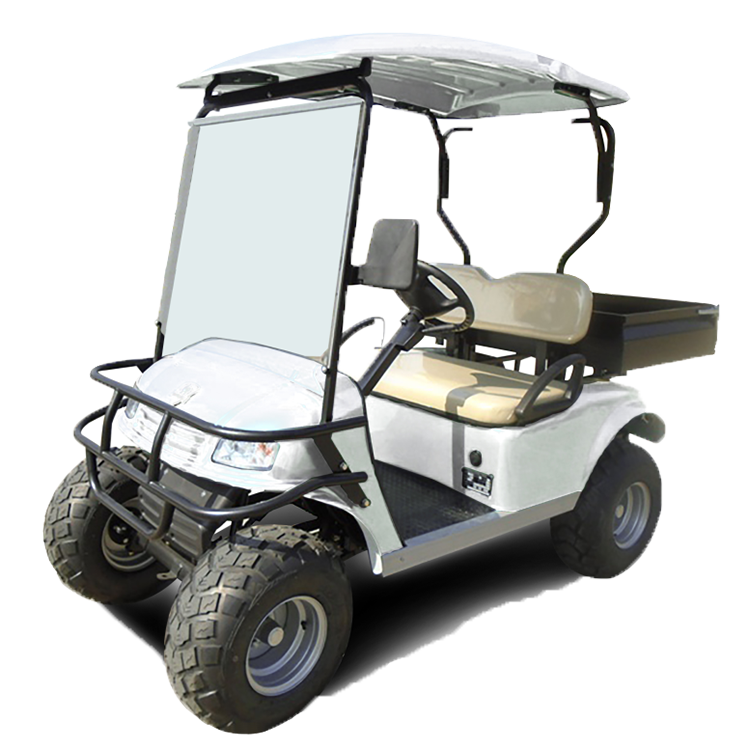

DU-H2

On/Off Road wheels

Water protected electric systems

Comfort and maneuverability

  • 1

DU-H2

Features

1. No moving abillity when charging.

2. Regenerative anti rolling down ability.

3. Regenerative braking system.

4. No moving ability when batteries reach treshhold discharge (80%).

5. No moving abillity when parking brake applied.

6. On/Off Road wheels with 6 ply tires: 22*10-10 (adjustable size).

7. Rims:Unti rust metal.

8. Chassis:Unti rust treatment.

9. Securing chains aside to each seat.

10. Rain cover for passenger compartment.

Specifications
ModelDU-H2Carring capacity360kg
Passenger capacity2Rear Cargo Carring capacity:200kg
Battery8V170AH*6Rear Cargo size:800*1100*230mm
Motor48V4KWRear Cargo material:Stainless steel
ControllerCurtis 1266A DC48V/400ASteeringRack&Pinion'' Sreering
Charger48V/18ABrakesRear Wheel Mechanical Drum Brake
Max.Speed32km/hTire:22*10-10, 4 Ply
Max.travelling range70~80kmGround clearence:150mm(full load)
Climbing capacity0.3Overall dimension:2600*1450*2070mm
Brake Range6mQty per container:8pcs/20GP 18pcs/40HQ
Minmum Turning radius4mStandard parts:Front/rear Basket, Front bumper, lighting system
Gross weight520kgOptional parts

Side mirrior, Inner mirrior, Seat belts,

 Weather enclosure, Sunshade curtain, Police light, PA system, Media player, Trojan battery, Rear facing seat kit
