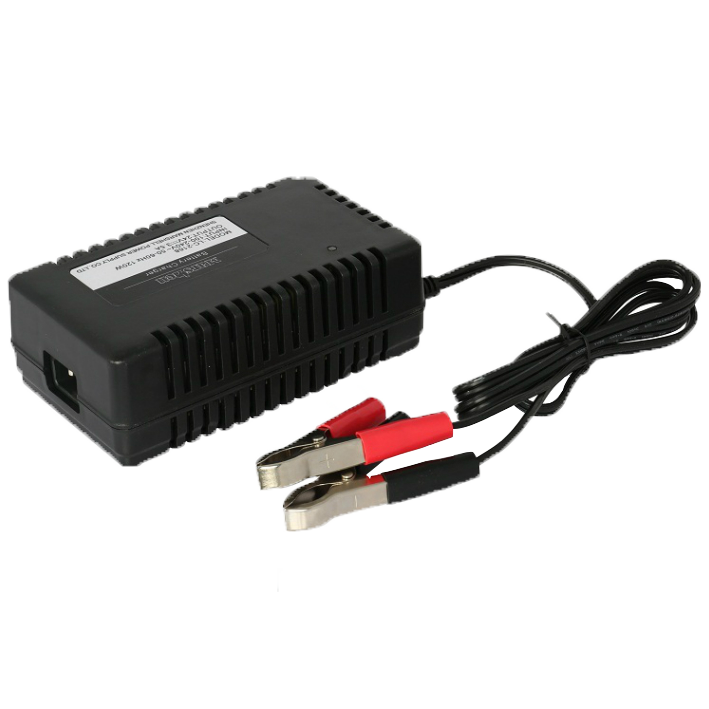

Car Battery Charger LC-2171 Series

Temperature-compensated

Unique Gel Cell battery

Multi-stage charging program

  • Inverter Battery Charger

Car Battery Charger LC-2171 Series

Car Battery Charger Features

1. Keep the battery charged and can be connected full time without overcharging;

2. Temperature-compensated to ensure optimum charge voltage according to ambient temperature;

3. Unique Gel Cell battery adjusted software allows for a slightly lower charge voltage and higher store voltage to protect sensitive true Gel Cell batteries;

4. Multi-stage charging program allows for optimal constant battery levels without overcharging;

5. Automatically switches to float/mainenance voltage mode after fully charging the battery.

Car Battery Charger Specifications
ParameterLC-2171LC-2101LC-2168LC-2169LC-2170
Input Voltage100~240VAC100~240VAC100~240VAC100~240VAC100~240VAC
Output Frequency50~60Hz50~60Hz50~60Hz50~60Hz50~60Hz
Output Voltage12V24V24V24V24V
Output Current6A5A3.5A3A2A
Battery Type (AH)20-6016.7-5011.7-35434036.7-20
Light Switching Current1200mA1000mA700mA600mA400mA
Overload ProtectionYesYesYesYesYes
Short Circuit ProtectionYesYesYesYesYes
Reverse Polarity ProtectionYesYesYesYesYes
Charging Status DisplayLEDLEDLEDLEDLED
CasePlasticPlasticPlasticPlasticPlastic
Dimension (MM)165*95*60165*95*60165*95*60165*95*60165*95*60
CertficationCE/ETL\CE/ETL/GSCE/ETL/GSCE/ETL/GS
